Controls

CATEGORY: MECHANICAL VENTILLATION WITH HEAT RECOVERY

The new Smart Comfort control has humidity and frost protection to counteract weather-related impairments Humidity-sensitive automatic mode In addition to manual operation with four ventilation stages, the integrated humidity and temperature sensors also make it possible to activate a humidity-sensitive automatic mode comprising eight stages. Special feature As a special feature, the Smart Comfort can also be used to set day and season dependent modes such as night-time reduction, su...

The new Smart Comfort control has humidity and frost protection to counteract weather-related impairments

Humidity-sensitive automatic mode

In addition to manual operation with four ventilation stages, the integrated humidity and temperature sensors also make it possible to activate a humidity-sensitive automatic mode comprising eight stages.

Special feature

As a special feature, the Smart Comfort can also be used to set day and season dependent modes such as night-time reduction, summer mode or intensive ventilation. In this way, fresh air and a healthy room climate as well as energy-saving ventilation can be ensured.

Installation

The installation is possible both in the living and sleeping-rooms, as well as in rooms with high humidity such as the bathroom.

Operation

The Smart Comfort (operating element plus control unit) and an additional power supply unit (18, 60 or 100 watts) are required for operation.

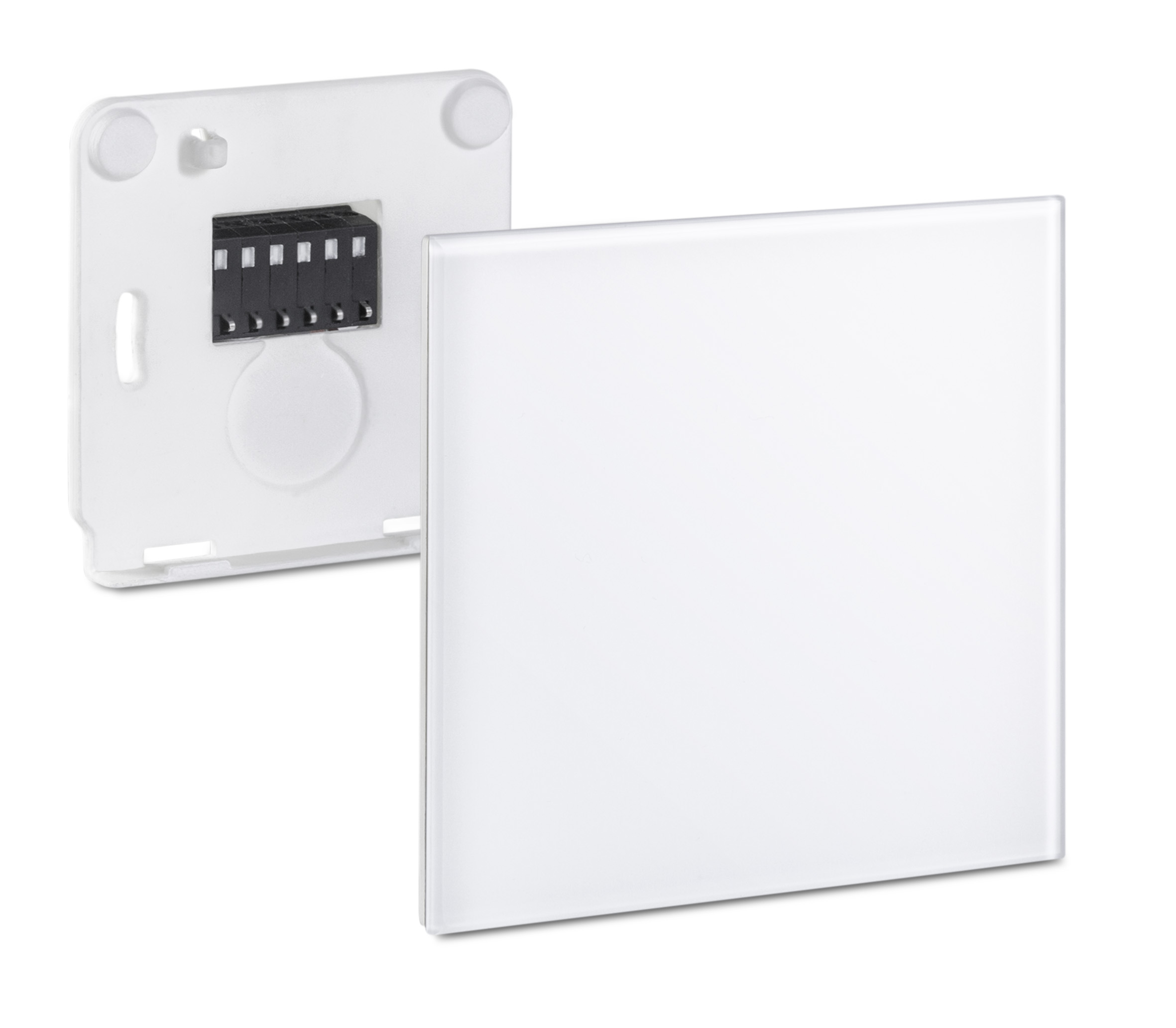

The new Gesture Control combines exceptional operability with intelligent sensor technology.

Equipment

The Gesture Control is equipped with the usual LUNOS standards, such as humidity/temperature control, frost protection and automatic operation, as well as various comfort functions.

Special feature

The Gesture Control has a touch-sensitive control panel, which can also be activated by various touchless gestures. Under the panel there are 60 RGB LEDs, which can light up in different colours. These LEDs provide feedback during operation and signal activated functions and states in an easily understandable way.

Two control channels

Universal controls, Nexxt and/or Silvento ec devices can be connected to the two outputs of the gesture control (an infinite number of controls can be connected in parallel). These two control paths or channels can be controlled separately. Thus two different fan types can be connected via Gesture Control, such as four e² or one Nexxt in the living rooms and two ego or two Silvento ec in the bathroom and kitchen. This means that the entire ventilation system of a residential unit can be operated via one control unit.

Sensor technology

The integrated humidity/temperature sensor system behind the touch unit and in the connected universal controls allows optimum automatic control adapted to the different local room air conditions. An integrated brightness and twilight sensor enables completely new control of the connected ventilation units.

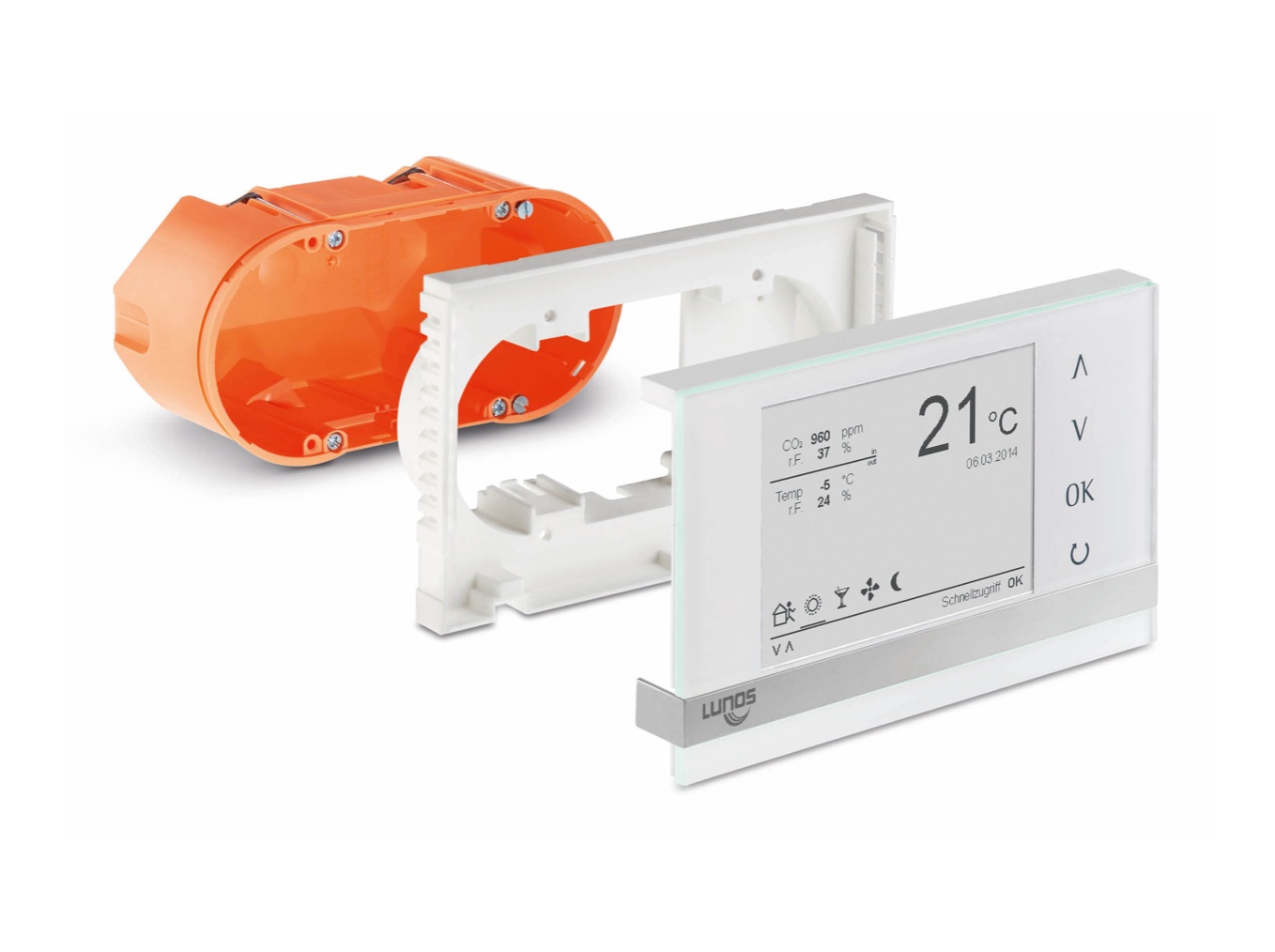

Touch Air Comfort, all fans - one control

This control is the multi-talent from LUNOS. The 12 V fans of the 160 series, just like the Silvento 30-60 FK, can be connected directly. Alternatively, any number of universal controls can be connected which can be operated easily via TAC. The 230 V fans from LUNOS can also be connected easily using a respective module.

The TAC can be configured for a wide range of fan scenarios. And it reveals itself as an energy efficient combination artist: Either different fans, the 230 V module 5/ACM for the Silvento series or individual universal controls are connected to three outlets of the control.

The integrated power pack is e.g. completely sufficient for a three-room apartment in which four e² in the living room areas and one Silvento FK in the bathroom can be triggered.

If more fans are required to supply larger apartments or detached houses, the Touch Air Comfort can regulate numerous universal controls. Several universal controls can be connected to each outlet of the TAC control. This means that any number of fans can be controlled via the Touch Air Comfort.

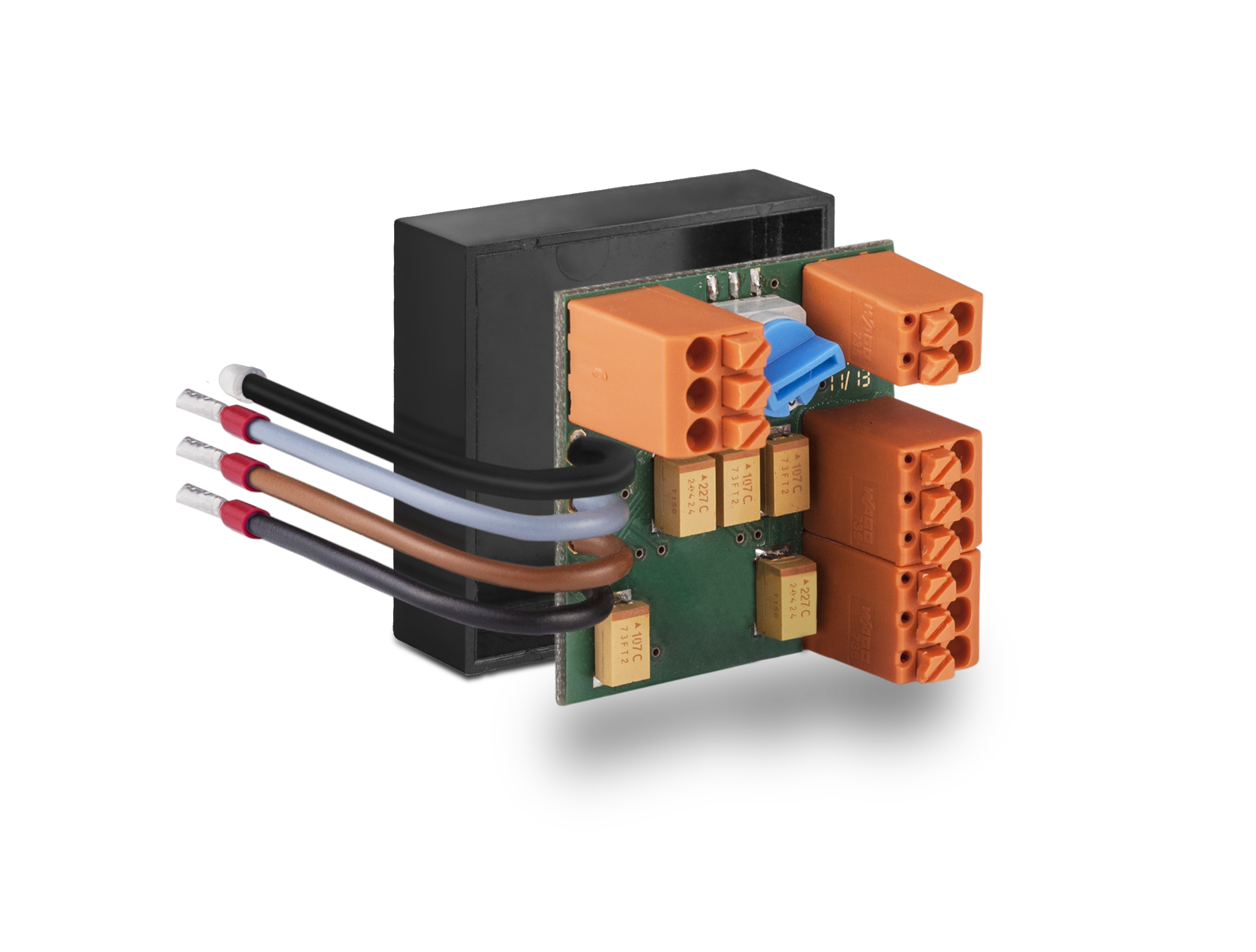

The Universal Controller from LUNOS: With Humidity Temperature Sensor as Standard

With the universal controller 5/UNI-FT everything can be controlled automatically. It is equipped as standard with humidity/temperature control and time follow-up module and can also be switched to summer mode. The universal controller is a multifunctional 12 Volt controller which can be operated with a simple two-pole series switch.

Functions 5/UNI-FT

  • Automatic humidity control
  • Three different humidity control ranges adjustable
  • Manual control via serial switch (four-stage)
  • Integrated time lag with interval operation
  • Radio module can be connected
